Our VTI breathing air valves can be customized by various accessories, such as screw-in parts, handwheels with additional functions, pressure gauges or bursting devices – create your own personal valve, that perfectly suits your requirements!
Double-winged TPU safety handwheel K17-2.11.175-Sx
- (here shown with handwheel disc „VTI“ and ring for additional identification)
- protects against unintentional closing during operation through double-winged contour (even in different inclinations)
- optional installation of a RFID chip for complete traceability
- optional attachment of a ring for additional identification
- for AIRcontrol valve series K44 and K632-3x
- standard colours: black, grey, blue
- other colours on request

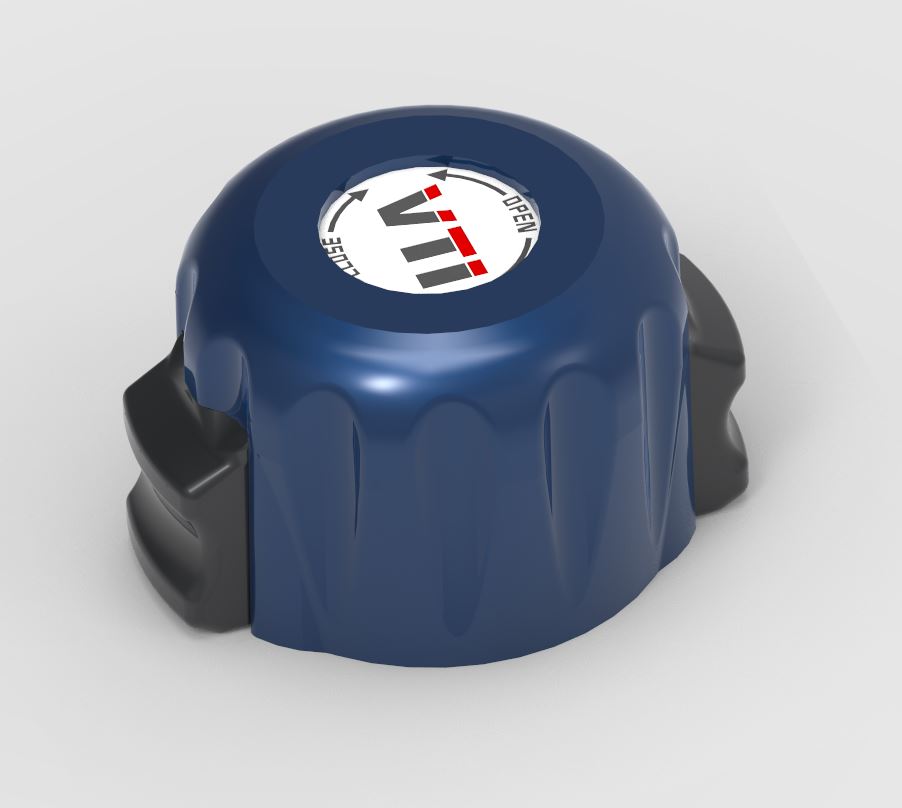

TPU ratchet handwheel type "Push-Button" K17-2.11.201 – soon to come
- (here shown with handwheel disc „VTI“)
- protects against unintentional closing during operation through a ratchet mechanism. To close the valves, both buttons must be kept pressed.
- for all AIRcontrol valve series
- standard colours: black, grey, blue
- other colours on request

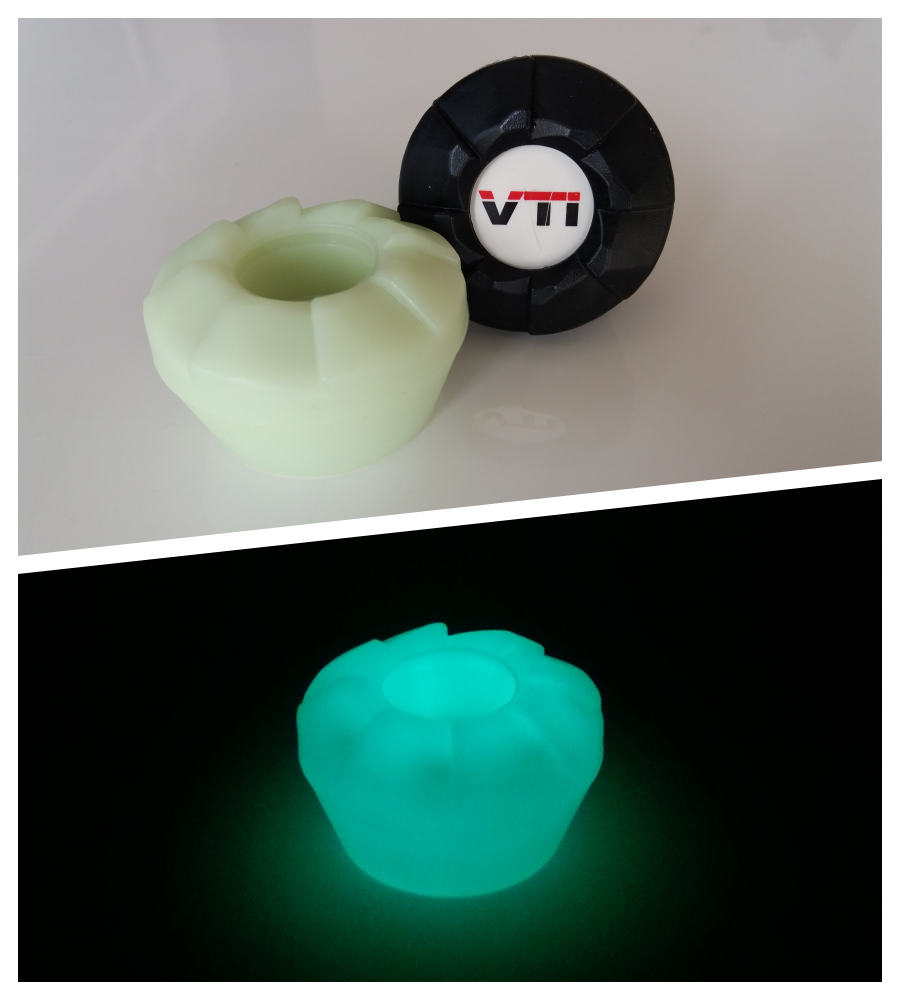

TPU standard handwheel K17-2.11.149-Sx
- (here shown in standard colour black with handwheel disc „VTI“ as well as yellow luminescent version in the light and dark)
- for all AIRcontrol valve series
- standard colours: black, grey, blue
- other colours on request

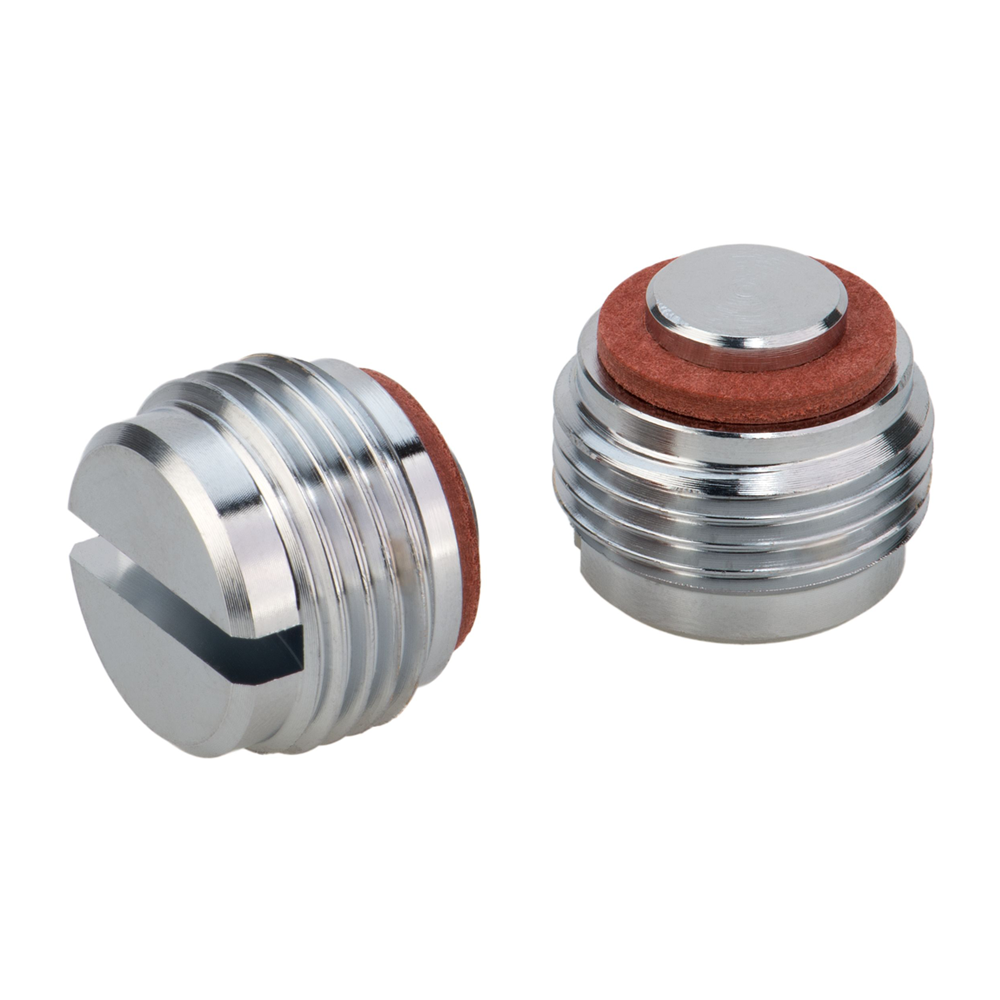

Closing plug 200 bar K19-87.0 (for transportation and storage)
- protects against potential contamination in the outlet connection
- keeps the pressure inside the cylinder in case of unintentional opening
- brass, chrome plated
- connection thread G5/8“ RH int. / EN144
- with groove

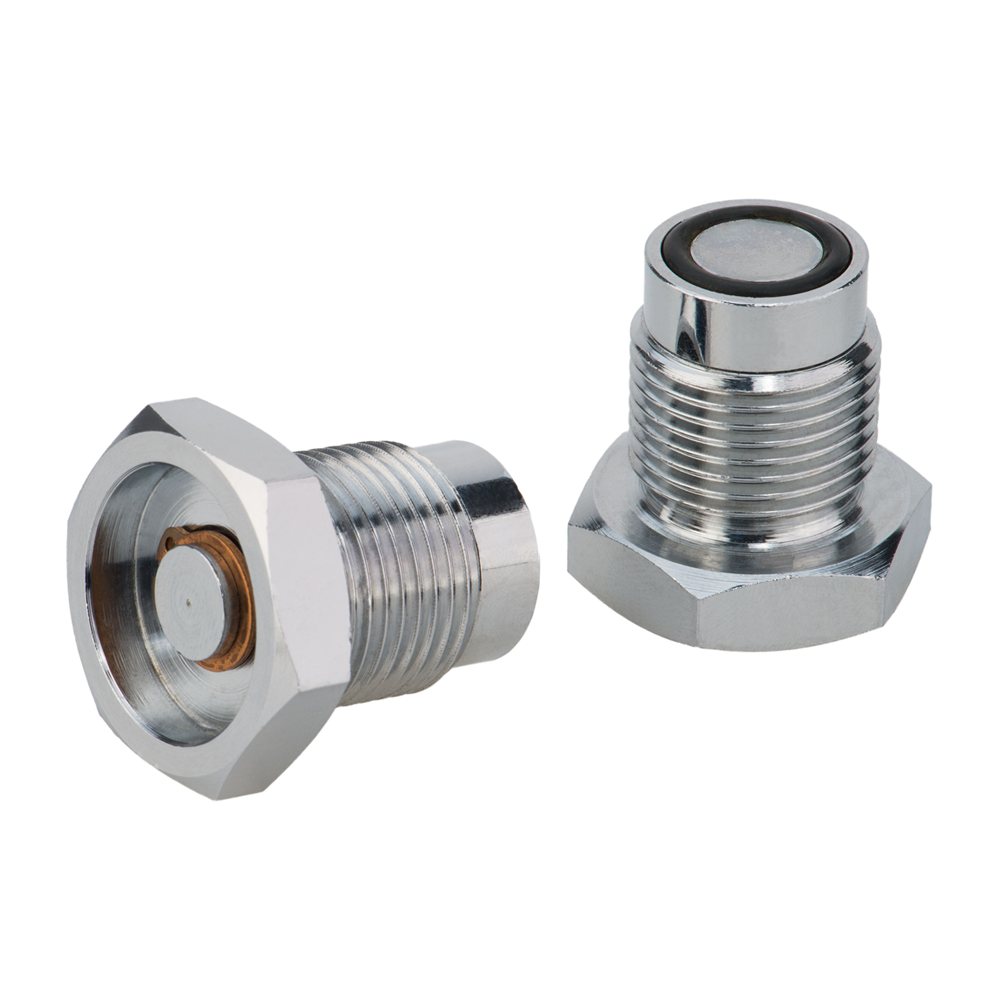

Closing plug 300 bar K212-10.2.0 (for transportation and storage)
- protects against potential contamination in the outlet connection
- keeps the pressure inside the cylinder in case of unintentional opening
- brass, chrome plated
- connection thread G5/8“ RH int. / EN144

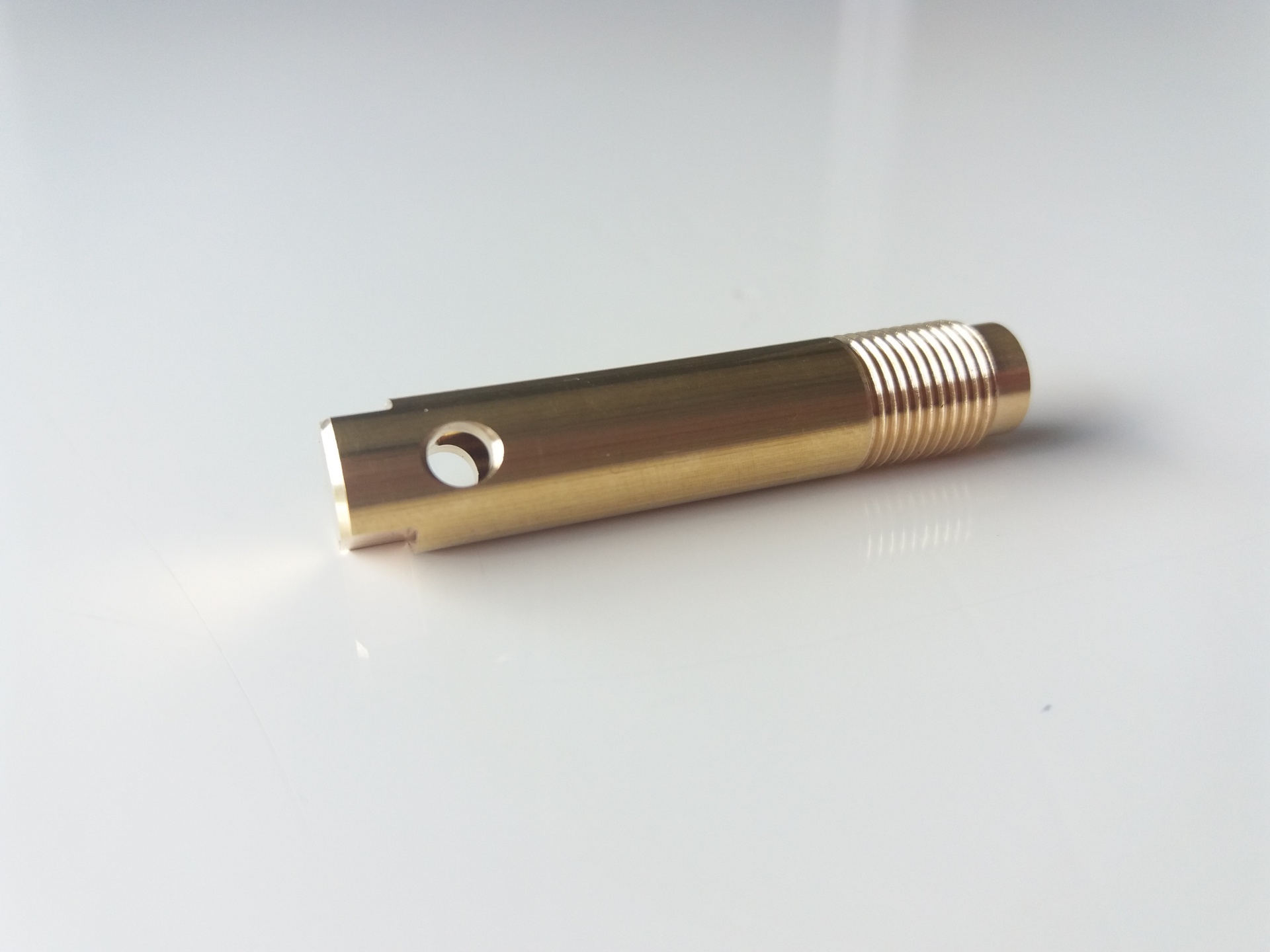

Protection tube K17-1.15.58-S1
- protects against potential contamination from the cylinder (particles, water etc.), from entering the airways
- brass
- connection thread M8x0,75
- total lenght 40 mm
- easy installation due to additional spanner flat
Sinterfilter K19-304.0-S1
- protects against potential contamination from the cylinder (particles, water etc.), from entering the airways
- brass, bronze
- connection thread M8x0,75
- total lenght 66 mm
- easy installation due to additional spanner flat
Bursting device standard version for 200 bar K1-529.0-S1 and 300 bar K17-519.0-S1
- protects against bursting of the cylinder, in case the pressure in the cylinder exceeds the maximum limit
- nominal burst pressure: 270 bar at 200 bar working pressure / 405 bar at 300 bar working pressure
Bursting device Australian version for 200 bar K1-401.0-S2 and 300 bar K1-400.0-S2
- protects against bursting of the cylinder, in case the pressure in the cylinder exceeds the maximum limit
- according to Australian standard AS2613
- burst pressure: max. 292,5 bar at 200 bar working pressure / max.420 bar at 300 bar working pressure

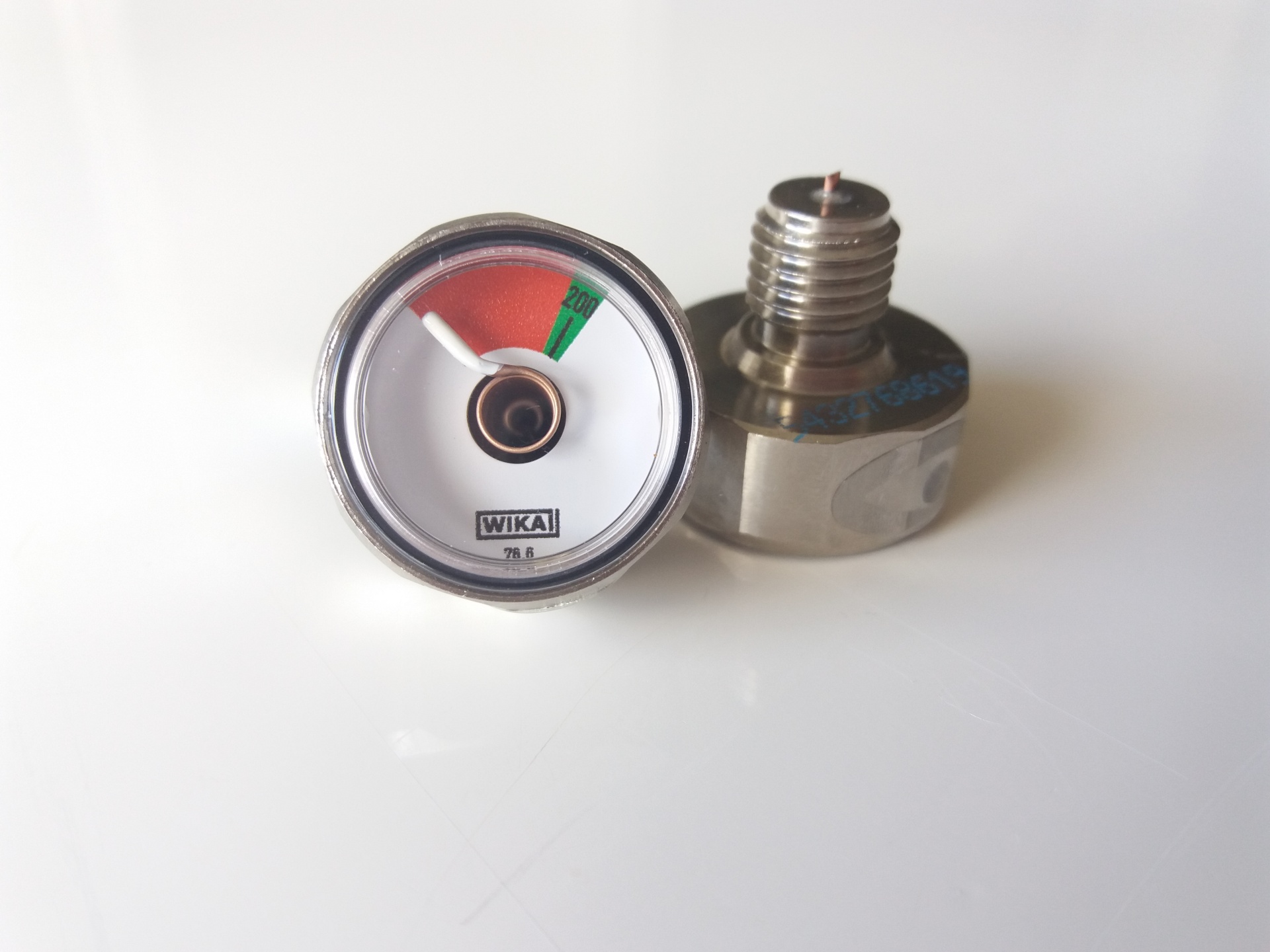

Pressure gauge for 200 bar K17-2.15.2-S6 and 300 bar K17-2.15.3-S8
- allows permanent indication of the cylinder content, even when the valve is closed
- indication scale 200 bar version: 0-180 bar red section, 180-220 bar green section
- indication scale 300 bar version: 0-275 bar red section, 275-330 bar green section
- other indication scale sections on request
- luminescent gauge face on request
- connection thread M10x1,25
