EFV - Excess Flow Valves

During operation it may happen, that a filled cylinder falls down and suddenly releases the entire cylinder content, either by an unintentional opening or a broken-off valve. This may lead to the cylinder flying around and thus causing damages to property and / or injury to persons in the worst case.

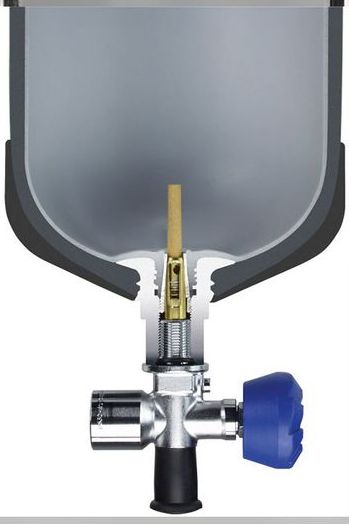

The installation of an Excess Flow Valve (EFV) can prevent such devastating effects. In case of a sudden release of the cylinder content, this safety device reduces the flow and thus prevents the cylinder from flying around – a simple and effective solution to protect lives!

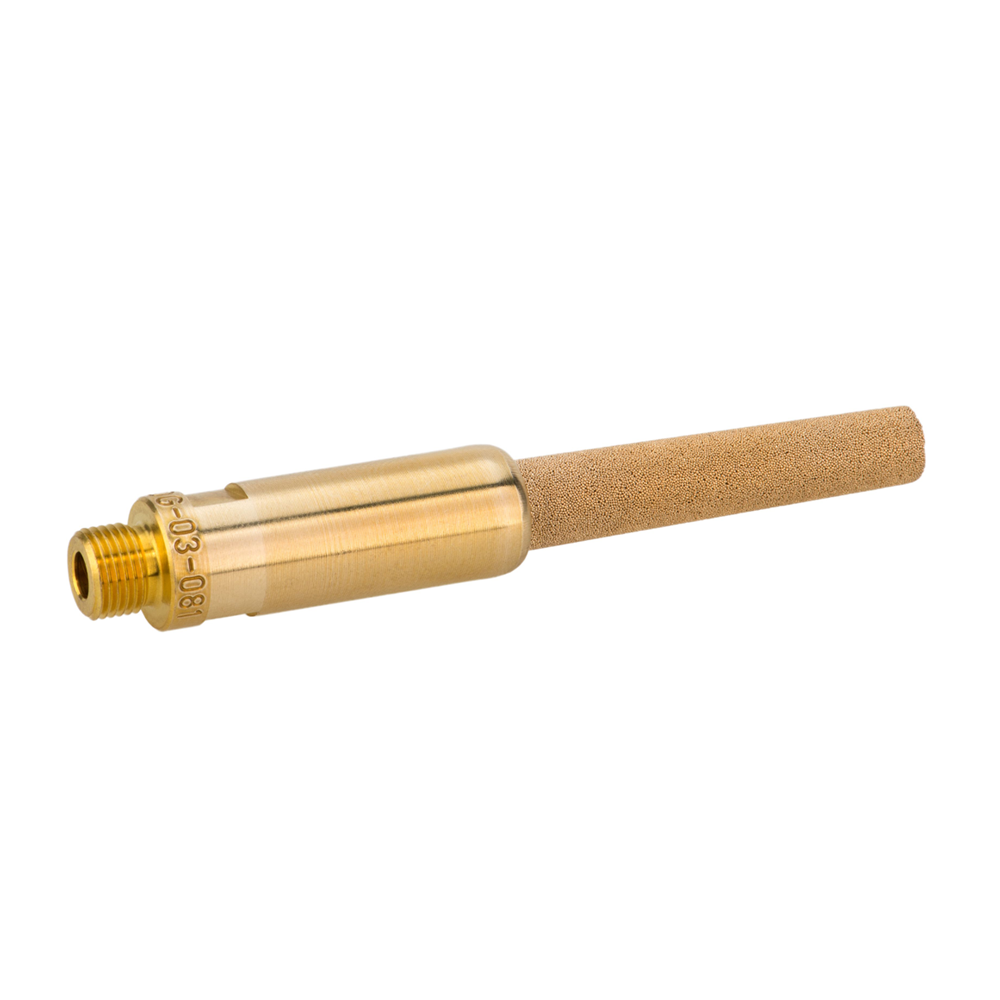

DN 4 mm with sinterfilter K19-277.0-S1

  • brass
  • connection thread M8x0,75
  • internal diameter 4 mm
  • external diameter 11,7 mm
  • not suitable for diving purposes

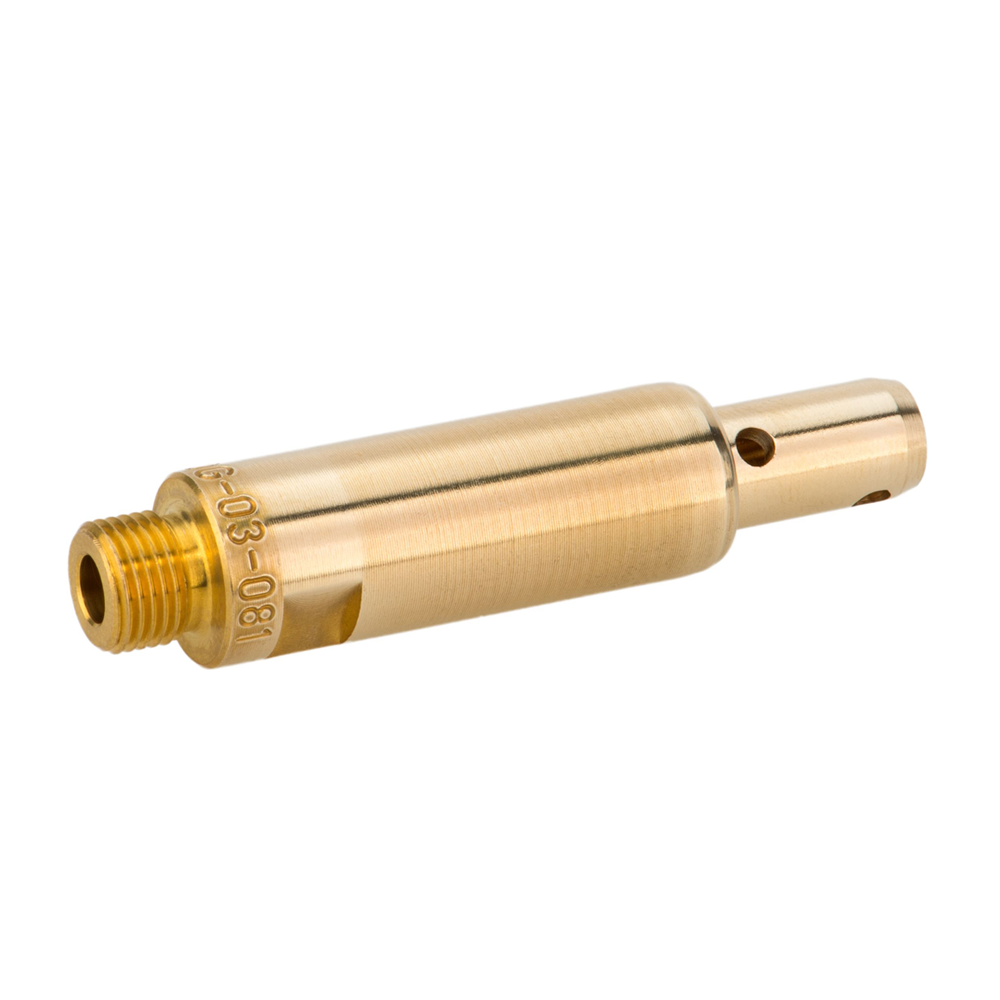

DN 4 mm with protection tube K19-330.0-S1

  • brass
  • connection thread M8x0,75
  • internal diameter 4 mm
  • external diameter 11,7 mm
  • not suitable for diving purposes

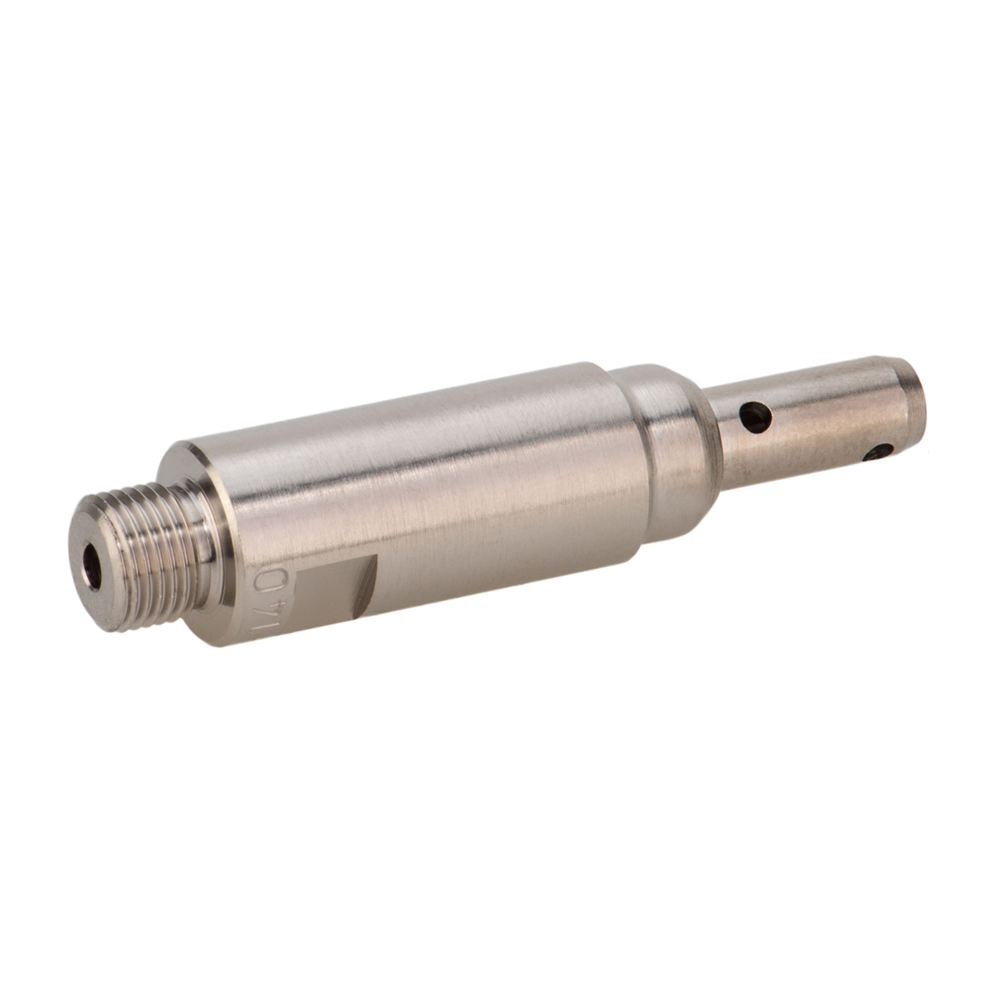

DN 2,5 mm with protection tube K19-284.0-S1

  • brass, nickel plated
  • connection thread M8x0,75
  • internal diameter 2,5 mm
  • external diameter 11,7 mm
  • not suitable for diving purposes
